Knowing the network before building on it

Before adding Pi-hole, HA DNS, monitoring, or anything else, I spent the first phase just understanding the network I already had. What the ISP gateway does, what the router does, how DHCP hands out addresses, and the path a DNS query takes from a client to the internet.

That sounds like busywork. It made every later phase easier to validate, because I had a known-good starting point to compare against.

The starting point: Xfinity

The house was on Xfinity, with the gateway in bridge mode and a TP-Link Deco mesh doing the actual routing.

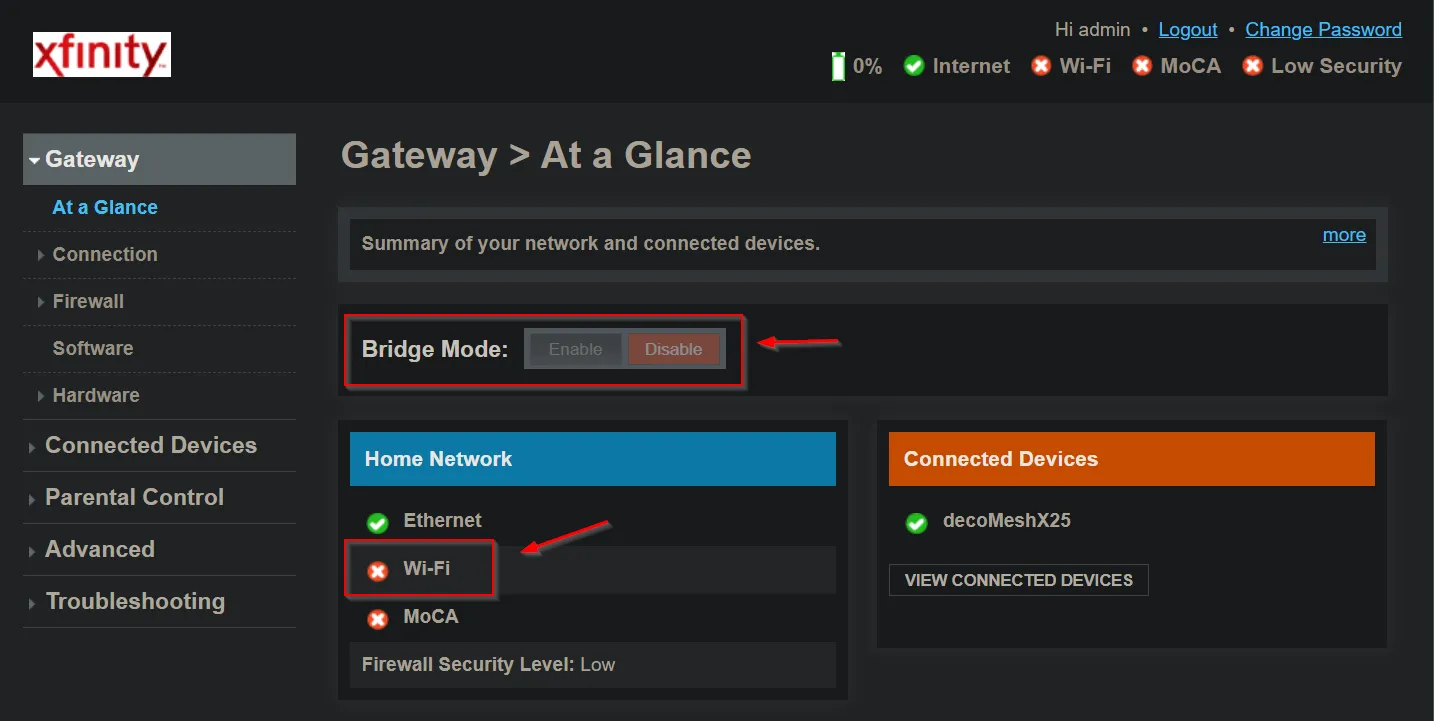

Xfinity gateway admin page: Bridge Mode set to Disable, Wi-Fi and MoCA
off, one connected device (the Deco mesh)

Bridge mode turns the gateway into something close to a modem. It stops routing and hands the connection downstream to the Deco, which then owns DHCP, NAT, and Wi-Fi. That’s the setup I wanted for the lab, because it puts one device in charge of the LAN.

The Deco showed the clients on the network, which is where I started building an inventory of what was actually connected.

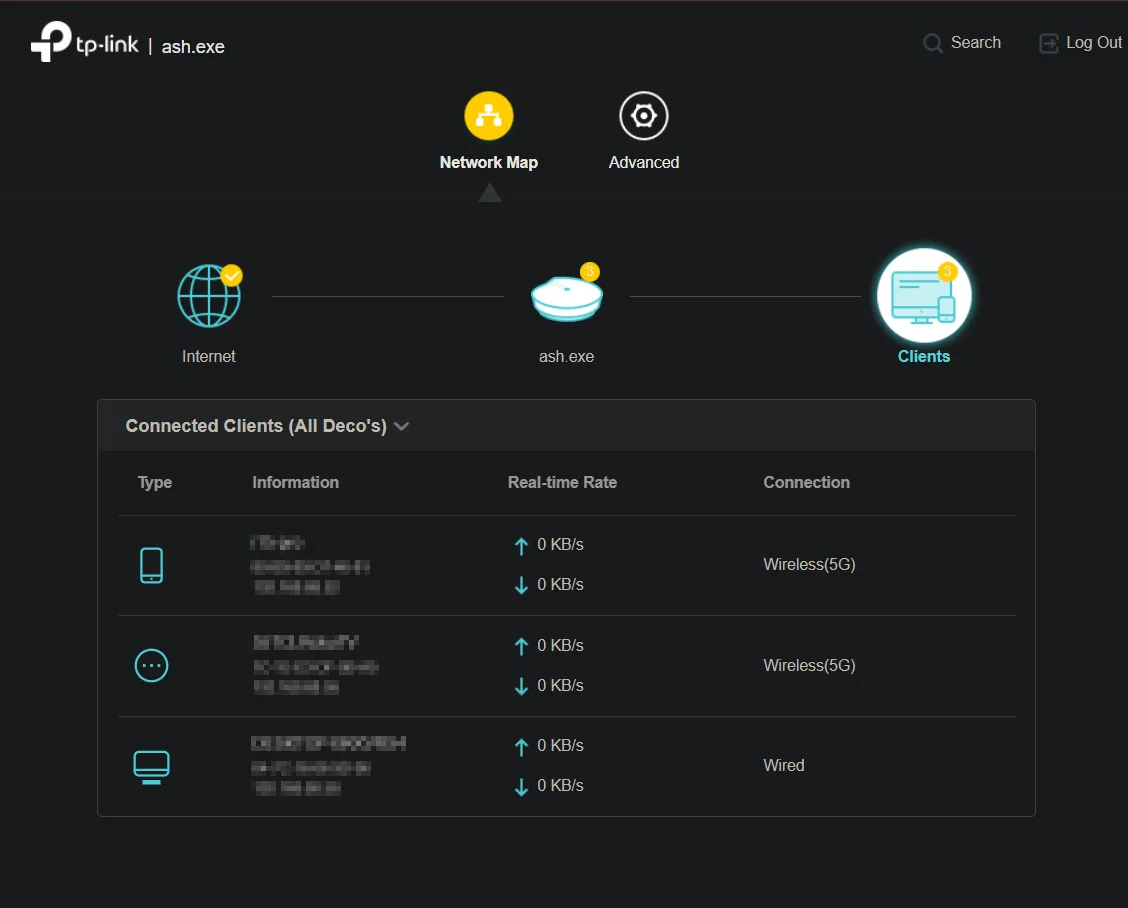

TP-Link Deco network map: internet connected, the mesh online, and the
connected-clients list (device names and addresses redacted)

The migration: AT&T Fiber

Partway through, the house switched to AT&T Fiber. That changed the topology, and the change is worth understanding because bridge mode and AT&T’s equivalent are not the same thing.

AT&T’s residential gateway can’t be fully bridged. What it offers instead is IP Passthrough: the gateway stays in the path, but it passes the public IP through to one downstream device (the Deco) instead of NATing behind its own private range.

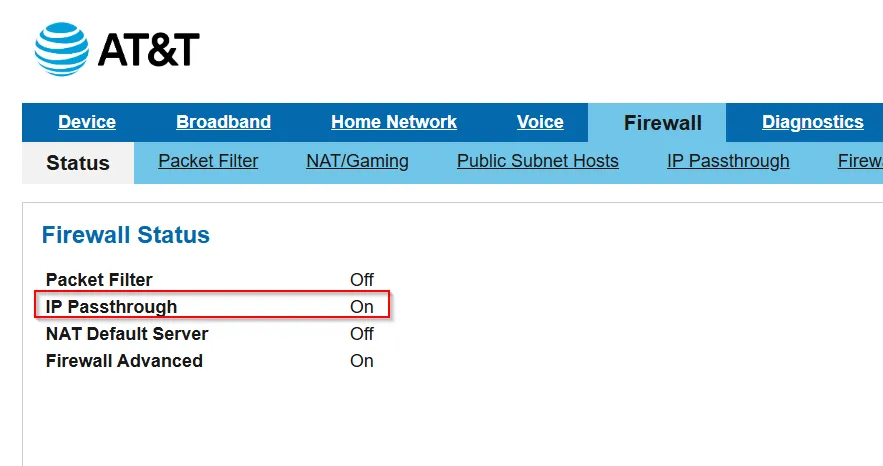

AT&T gateway firewall status page: IP Passthrough set to
On

The practical difference:

Setup	What the gateway does
Xfinity bridge mode	Behaves like a modem, no routing, Deco owns everything
AT&T IP Passthrough	Still in the path, still does some functions, but the public IP and routing responsibility move to the Deco

For documentation that matters. With Xfinity I could describe the gateway as out of the picture. With AT&T I had to note that it’s still there, and that a double-NAT is possible if IP Passthrough isn’t set correctly.

What this phase established

By the end of it I had the things every later phase would be validated against:

how the gateway behaves, per ISP
the router’s role and the DHCP range
the DNS path a client uses today
a list of what’s connected
the limitations I’d want to fix

The next phase was the first real change: putting Pi-hole in the DNS path and taking control of resolution.
